Over a decade of experience in manufacturing silver conductive paste, NEXTECK is sure to be the first choice for your sourcing need. We offer high quality product with competitive price in a prompt delivery.
| Key Features of our Silver Conductive Paste: | Applications: |
| 1. Excellent dispensability | 1. Lighting LED (light-emitting diode) |
| 2. Low flowability | 2. Laser diodes |
| 3. Very low volatility | 3. RF parts |
| 4. Low water absorption | 4. High power MMICs |
| 5. Fast cure | 5. High power hybrids and modules |
| 6. Superior stability | 6. Tin solder substitute |

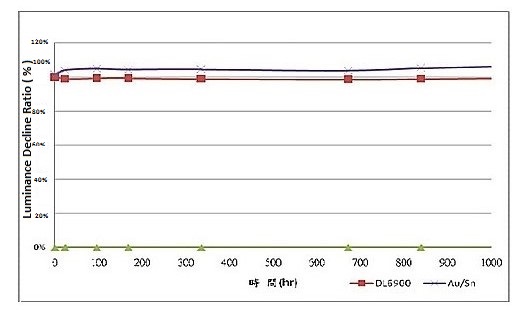

1000 Hrs Life( Recommended processing temperatures： 30 minutes @ 150℃ )
Typical Characteristics | |||
Filler Type | Silver ( Ag ) | Storage Condition | Below 0℃ |
Total Solid Content | 94.5±1% | Shelf Life | Approx. 3 months |
Viscosity at 25℃ | Typical 18,000 ± 2,000cps | Package | 20 g/each，16 per box |
Resistivity | < 50 mΩ/sq./mil | Weight Lost | < 0.1% |
Thermal Conductivity | > 60 Watt/(moK) | Thermal Expansion | 20~40 ppm /℃ |
NEXTECK provides completed evaporation materials for resistances and electron beams .The materials can be manufactured to variety shapes and specifications , including strip, wire, rod, pellet and pieces etc. NEXTECK not only provides standard metal evaporation materials, but also make composite materials, hot pressed ceramics for alloys and vaccum casting materials.
